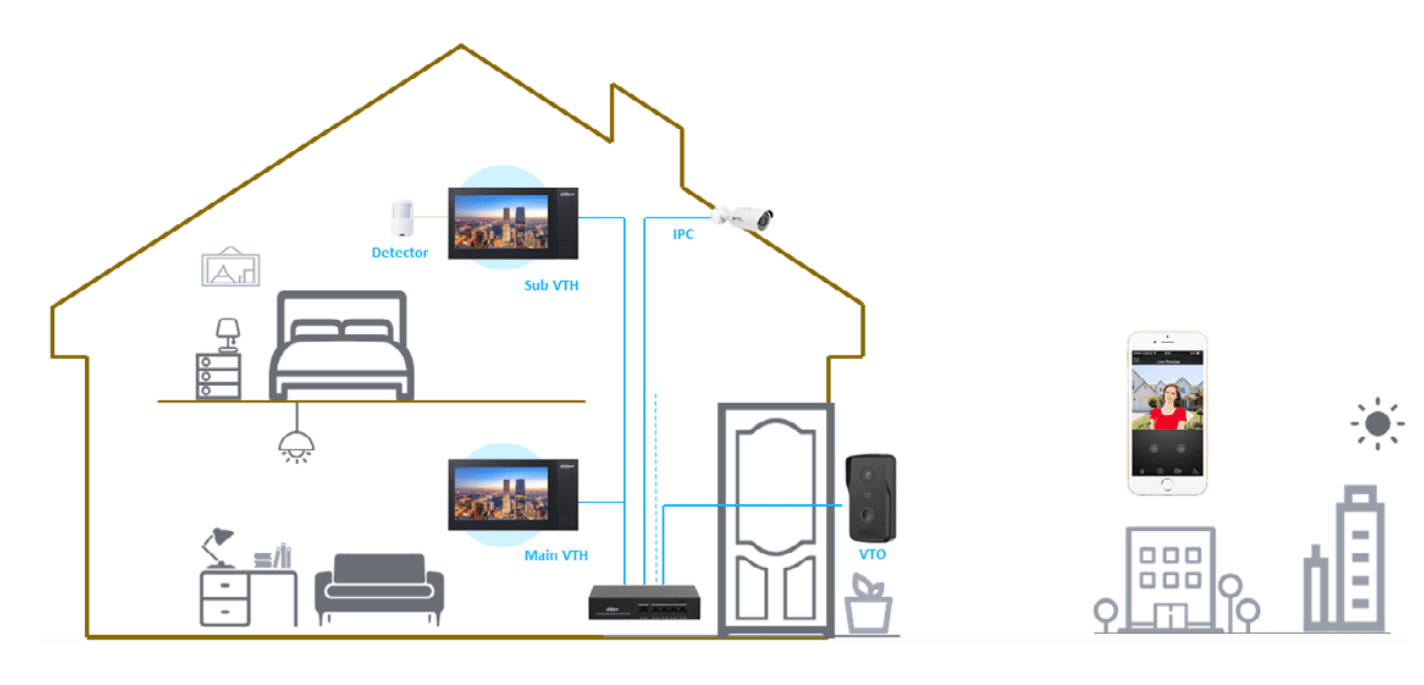

IP Villa Door Station & Indoor Monitor uses two wires to transmit data signals and power which access the Internet easily through a special converter. The system adapts to multiple wiring environments easily and enables all digital villa functions. Wi-Fi Villa Solution integrates video intercom, remote control, real-time video surveillance, and intrusion detection into an all-in-one platform. Outdoor stations, indoor monitors, alarm detectors, and smart lock work together through Wi-Fi and Dahua to create a wireless smart home system.
Wi-Fi outdoor stations can function as a doorbell and be remotely controlled with a smartphone.
Product Specification
Brand | Dahua |
Product Type | IP Kit |

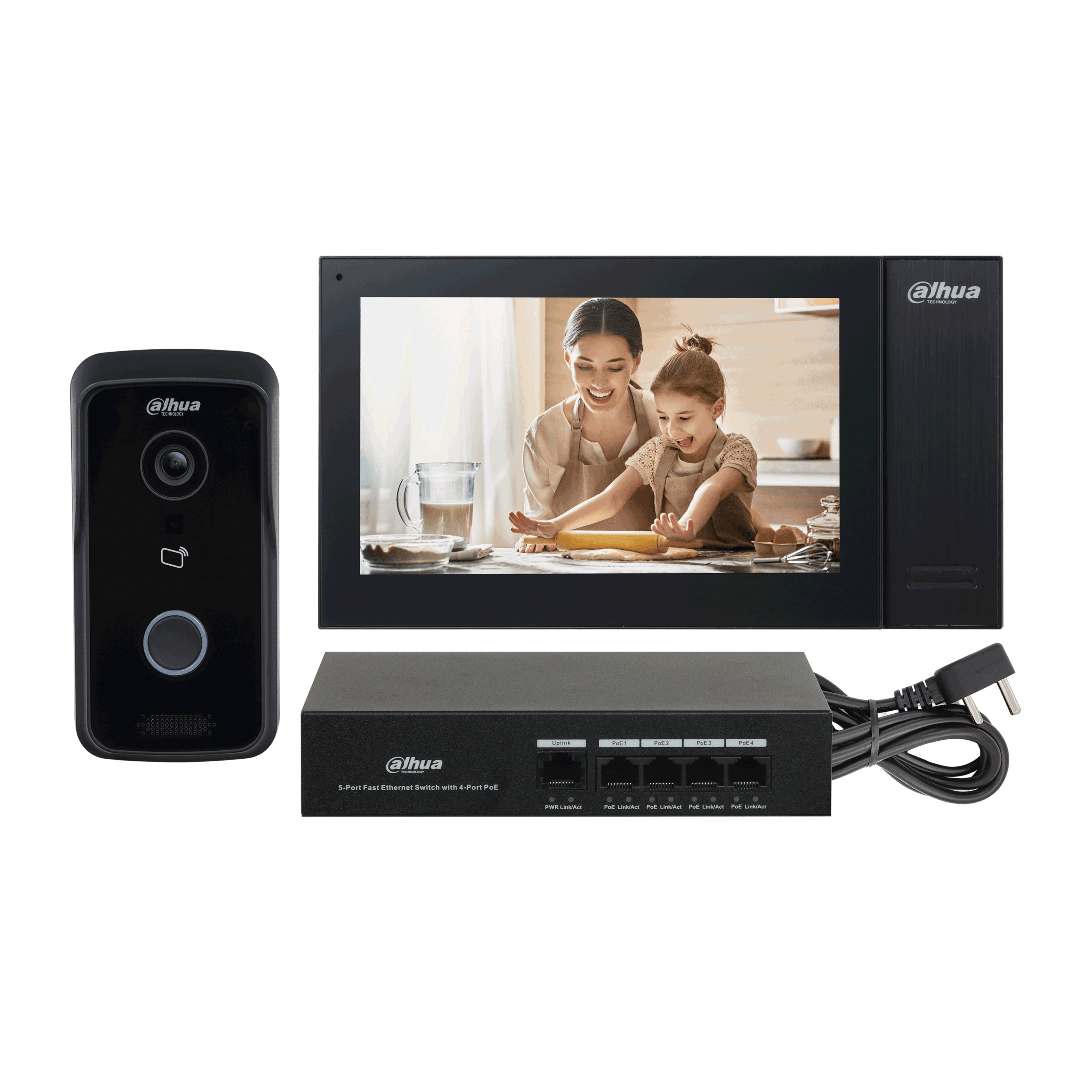

Product Model | DHI-KTP02 |
Model | DHI-VTO2111D-P-S2 |
System | |
Main Processor | Embedded processor |
Operating System | Embedded LINUX operating system |
Button Type | Mechanical |
Interoperability | ONVIF |
Internet Protocol | SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP |
Baisc | |
Camera | 1/4″ 1MP CMOS high definition, low illumination/ WDR, color/IR |
Angle Of View | Horizontal: 107°; vertical: 61°; diagonal: 122° |
WDR | Yes |
Noise Reduction | 3D noise reduction |
Video Compression | H.264 |
Video Resolution | Main stream: WVGA, 720P, D1 Sub stream: CIF, WVGA, QVGA, 1080P, D1 |
Frame Rate | PAL: 25 fps NTSC: 30 fps |
Video Bit Rate | 256K to 4M |
Light Compensation | Auto IR |
D/N | ICR auto switch |
Audio Compression | G.711a; PCM; AAC |
Audio Input | 1 |
Audio Output | Built-in speaker |
Audio Mode | Two-way voice call |
Audio Enhancement | Echo suppression and cancellation/digital noise reduction |
Audio Bit Rate | 16KHz, 16Bit |
Function | |
Communication | Full digital |
Unlock Mode | Card/App remote/indoor monitor unlock |
Card Type | IC card |
Motion Detection | Video motion detection |
Auto Snapshot | Auto snapshot can only be enabled on indoor monitors |
Leave Photos And Messages | Yes (SD card is needed) |
Web Configuration | Yes |
Performance | |
Card Reading Distance | 3cm–5cm |
Casing | PC+Acrylic |
Capacity | |
Card | 10,000 |
Port | |
Rs-485 | 1 |
Electric Lock | 1 |
Exit Button | 1 |
Door Status Detection | 1 |
Lock Control | 1, normally closed by default |
Network | 1 10Mbps/100Mbps network port (8-core white ribbon cable) |
Alarm | |
Tamper | Yes |
General | |
Color | Black |
Power Supply Mode | 12V DC 1A Standard PoE |
Installation | Surface mount |
Certifications | CE FCC UL |
Accessory | Brackets and alarm ribbon cable |
Dimensions | 135mm×70.4mm×34.4mm (5.31″×2.77″×1.35″) |
Protection Grade | IP65 (silicone sealant is needed, see the quick start guide) |
Operating Temperature | -30°C to +60°C (-20°F to +60°F ) |
Operating Humidity | 10%RH–90%RH (non-condensing) |
Operating Altitude | Beneath 3000 m (9842.52 ft) |
Power Consumption | Standby≤1W, working≤5W |
Gross Weight | 326 g (0.72 lb) |
Model | DHI-VTH2421FB-P |
Main Processor | High performance embedded processor |
Operating System | Embedded LINUX OS |
Screen Type | Capacitive screen |
Display | 7-inch TFT screen |
Resolution | 1024 × 600 |
Video Compression | H.264 |
Audio Compression | G.711A/G.711U/PCM |
Audio Input | 1 channel all-direction microphone |
Audio Output | Built-in 1.5W loudspeaker |
Audio Mode | Support dual-way bidirectional talk |
Audio Enhancement | Support echo cancellation/DNR |
Audio Bit Rate | 16 kbps |
Communication Mode | Full digital |
Information Release | Support to receive and view notifications issued by center |
Leave Videos Or Text Messages | Yes |
Dnd Mode | Support to set DND period |
Sub-Station Quantity | 9 |
Alarm Input | 6 channel (switch quantity) |
Alarm Output | 1 channel |
Network | 1 RJ-45 |
Sos Alarm | Yes |
Casing | PC+ABS |
Appearance Color | Appearance Color |
Power Supply | Power Supply |
Installation | Wall mount |
Accessories | Default bracket Default alarm cable |
Dimensions | 119.6 mm × 221.5 mm × 21.5 mm (4.71″ × 8.72″ × 0.85″) |
Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
Operating Humidity | 10%RH-95%RH |
Power Consumption | Standby≤4W, work≤6W |
Gross Weight | 0.35 Kg (0.77 lb) |
Power Supply Mode | PoE or DC 12V |
Storage | Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G |
Model | DH-PFS3005-4ET-36 |
Main Processor | High performace embedded processor |
Ethernet Port | 1×10/100 Base-T 4×10/100 Base-T (PoE power supply) |
PoE Power Consumption | Each power ≤30W, Total≤36W |
PoE Protocol | IEEE802.3af, IEEE802.3at |
Weight | 0.5kg |
Dimension(W×D×H) | 170mm×100mm×35mm |
Warranty | As Per Manufacturer Terms and Condition |
